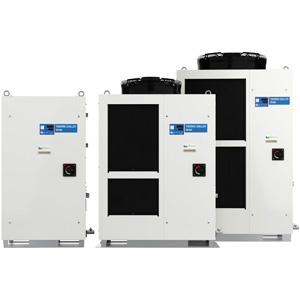

HRSHF, Large Capacity, High Efficiency Smart Inverter Chiller, R32 Refrigerant

HRSHF refrigerated chillers recirculate water or ethylene glycol solution as a coolant for processes and equipment sensitive to overheating or optimal process temperatures. Extracted heat will be air cooled by fan or water cooled with facility water. Both coolant and refrigeration circuits are included in a compact and lightweight package. Inverters offer substantial energy savings through demand-based rotation control for the compressor, pump and fan. Power supply options ensure global voltage compatibility. Additional features include a heating function, a low-maintenance seal-less immersion pump, and IPX4 rating for outdoor installation. Optional compatibility with deionized coolant water is available.

  • Cooling capacity (kW): 15.7, 20.5, 25, 30.5
  • Power supply (3-phase VAC): 200 (50Hz) / 200~230 (60Hz); 380Y/220~415Y/240 (50Hz) or 380Y/220~480Y/277 (60Hz)
  • Temperature range setting: 5 to 35° C
  • Temperature stability: ±0.1° C
  • Refrigerant: R32 (GWP = 675) (not eligible for air freight)
HRSHF, Large Capacity, High Efficiency Smart Inverter Chiller, R32 Refrigerant
Configuration Options


Copy Configuration Number

Product Options

List updates based on your most recent configuration changes.
Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Cooling Capacity Configuration Status
Cooling Method Configuration Status
Pipe Thread Type Configuration Status
Power Supply Configuration Status
Caster and Adjuster-Feet Configuration Status
Earth Leakage Breaker Configuration Status
Fluid Fill Port Configuration Status
DI Water Compatible Configuration Status
Increased Cooling Capacity Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
