LEC-T1 Teaching Pendant with Buttons

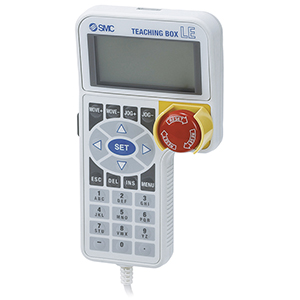

The LEC-T1 is a handheld device for configuring settings of both JXC series single-axis controllers and LEC legacy 24VDC controllers for LE e-actuators. The pendant can be used in place of a bulkier laptop with software. The device includes a membrane button array and monochrome LCD screen for accessing all operations. Step data can be set, movements can be tested, alarms and warnings can be confirmed, and actuator status can be observed. Power is supplied from the controller once connected via the attached communication cable. A stop switch is built in to the device body. An enable switch is optional for preventing unintentional jog test function.

  • Optional English or Japanese languages
  • IP64 ingress rating
LEC-T1 Teaching Pendant with Buttons
New
Configuration Options


Copy Configuration Number

Product Options

List updates based on your most recent configuration changes.
Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Unit Configuration Status
Cable Length Configuration Status
Initial Language Configuration Status
Stop Switch Configuration Status
Enable Switch Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.

Downloads

The part number needs to be complete in order to view/download CAD Models.

Model does not exist, please email cad@smcusa.com with the complete part number, CAD file format and version required.

CAD is not currently available for auto generation of . The file can be requested by contacting CAD@smcusa.com

CAD Downloads

Download CAD File

View CAD Models

View 3D Model

Product Catalog

Series Catalog

RoHS Certificate

Download Certificate
