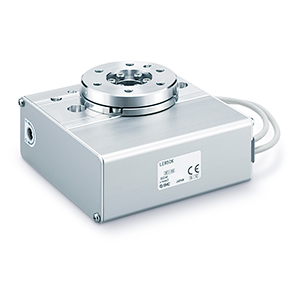

LER Rotary Table, Battery-less Absolute Encoder

The LER features a rotating worktable positioned above an enclosure for the motor and drive train.  Both a basic and high torque variation are offered.  Three rotation angles are also available, including 90°, 180°, or 320°.  This version includes a 24VDC motor with a battery-less absolute encoder.  This encoder allows the actuator to be powered down without losing its positional awareness.  The machine's PLC can access the controller's operational and positional step data through several fieldbus protocols, IO-Link, or parallel I/O.



  • Body size: 50
  • Rotation angles: 320°, 90° or 180° (external stopper)
  • Maximum torque: 6.6 N?m (basic), 10 N?m (high)
  • Positioning repeatability: ±0.05°  (±0.01° at end with external stopper)
  • Backlash: ±0.5°
LER Rotary Table, Battery-less Absolute Encoder
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Table Accuracy Configuration Status
Max. Rotating Torque Configuration Status
Rotation Angle Configuration Status
Motor Cable Entry Configuration Status
Actuator Cable Type, Length Configuration Status
Controller Configuration Status
Mounting Configuration Status
I/O Cable Configuration Status
Communication Plug Connector Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
