ZH, Vacuum Generator, Box Type

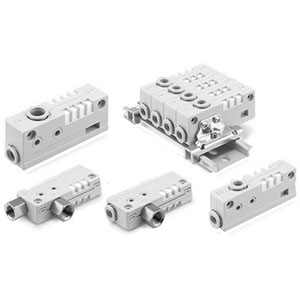

Vacuum Generator series ZH box type offers a compact and light weight point-of-use generator with built-in silencer.

  • Nozzle diameters (mm): 0.5, 0.7, 1.0, 1.3, 1.5, 1.8, 2.0
  • Built-in silencer
  • Maximum vacuum pressure: -90 kPa (type S), -66 kPa (type L)
  • Available with one-touch and NPT, G, Rc screw-in connections
