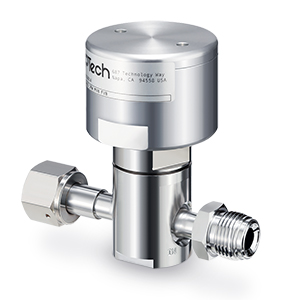

AZ4141, Diaphragm Valve, Air Operated for Ultra High Purity

Series AZ4141 ultra high purity (UHP) diaphragm valve for gas delivery in semiconductor and other clean industries.  This series is available in air operated and available with up to 4 ports.

  • Suitable for UHP gas line supply line
  • Body material: 316L SS
  • Pneumatically actuated normally closed
  • Available with up to 4 ports
