LEA Y-Z Axis Line Gantry Kits

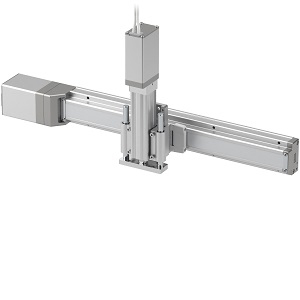

This LEA mounting kit consists of one or two plates depending on actuator size, pins and screws. The kit allows an LEYG guide rod Z-axis to be attached to an LEF slider Y-axis. Online model selection software is available to specify and confirm actuator types and sizes, as well as the kit required. See the catalog PDF below for a QR code that will direct you to the software.

  • Y-axis options include size 16, 25, 32 or 40 LEFS, LEKFS, or LEFB sliders
  • Z-axis options include size 16 or 25 LEYG guided rods
  • Actuators are ordered separately
