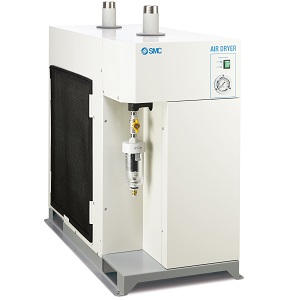

IDFB-F, Refrigerated Air Dryer, Low GWP Refrigerant for North America

Series IDFB-F refrigerated air dryers remove moisture from cooled, compressed air. Sizing will depend on operational temperature, pressure, and flow conditions. These durable units have simple control systems and are easily serviced.

  • UL certified for use in North America
  • 230VAC, 60 Hz operation
  • Max. inlet air temperature: 149°F/65°C
  • Four available flow rates up to 335 SCFM / 570m³/hr (ANR)(@37°F/3°C PDP)
  • Connections: NPT male threads are standard; R adapters are available
  • R454C refrigerant (GWP=146) is suitable for US and Canada
IDFB-F, Refrigerated Air Dryer, Low GWP Refrigerant for North America
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Size Configuration Status
Voltage Configuration Status
Thread Type Configuration Status
Anti-corrosive treatment for copper tube Configuration Status
Heavy-duty auto drain Configuration Status
Earth leakage breaker Configuration Status
Terminal block for operating, error, and remote operation signals Configuration Status
Timer controlled solenoid valve type auto drain Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.

Downloads

The part number needs to be complete in order to view/download CAD Models.

Model does not exist, please email cad@smcusa.com with the complete part number, CAD file format and version required.

CAD is not currently available for auto generation of . The file can be requested by contacting CAD@smcusa.com

CAD Downloads

Download CAD File

View CAD Models

View 3D Model

Product Catalog

Series Catalog

RoHS Certificate

Download Certificate
