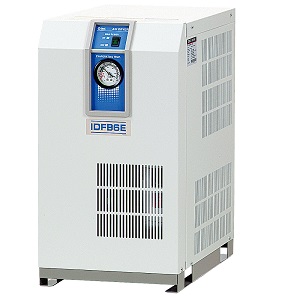

IDFB*E-F, Refrigerated Air Dryer, Low GWP Refrigerant for North America

Series IDFB*E-F refrigerated air dryers remove moisture from cooled, compressed air. Sizing will depend on operational temperature, pressure, and flow conditions. These durable units have simple control systems and are easily serviced.

  • UL certified for use in North America
  • 115VAC, 60 Hz operation
  • Max. inlet air temperature: 122°F/50°C
  • Six available flow rates up to 71 SCFM / 120m³/hr (ANR)(@37°F/3°C PDP)
  • Connections: NPT female threads are standard; Rc adapters are available
  • R-1234yf refrigerant (GWP=4) is suitable for US and Canada
IDFB*E-F, Refrigerated Air Dryer, Low GWP Refrigerant for North America
SMC Choice
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Size Configuration Status
Voltage Configuration Status
Connection Port Thread Configuration Status
Cool Compressed Air Output Configuration Status
Moderate pressure specification Configuration Status
With an earth leakage breaker Configuration Status
Power supply terminal block connection Configuration Status
With a terminal block for operating and error signals Configuration Status
With a timer controlled solenoid valve Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
