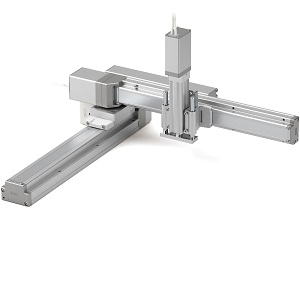

LEA Multi-Axis Mounting Kit - X-Y-Z Axis Cantilever

This LEA mounting kit consists of three plates, a boom profile, and pins and screws. The kit allows an LEYG guide rod Z-axis to be attached to two LEF sliders for the X- and Y-axes. Online model selection software is available to specify and confirm actuator types and sizes, as well as the kit required. See the catalog PDF below for a QR code that will direct you to the software.



  • X-axis options include sizes 16, 25, 32 or 40 LEFS or LEKFS sliders
  • Y-axis options include sizes 16, 25, 32 or 40 LEFS or LEFB sliders
  • Z-axis options include sizes 16 or 25 LEYG guided rods
  • Actuators are ordered separately
  • See Electric Actuator Model Selection Software for sizing help
LEA Multi-Axis Mounting Kit - X-Y-Z Axis Cantilever
New
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
X-axis Configuration Status
Y-axis Configuration Status
Y-axis mounting direction Configuration Status
Y-axis bracket (See catalog for bracket number needed for size and stroke) Configuration Status
Z-axis Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
