LEA X-Y-Z Axis Gantry with Support Guide

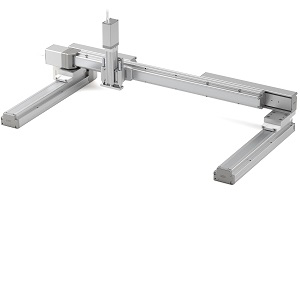

This LEA mounting kit consists of three plates, two boom profiles, plus pins and screws. The kit allows an LEYG guide rod Z-axis to be attached to two LEF sliders for the X- and Y-axes. An undriven support guide parallel to the X-axis is added for greater stability. Online model selection software is available to specify and confirm actuator types and sizes, as well as the kit required. See the catalog PDF below for a QR code that will direct you to the software.



  • X-axis options include sizes 16, 25, 32 or 40 LEFS or LEKFS sliders
  • Y-axis options include sizes 16, 25, 32 or 40 LEFS, LEKFS or LEFB sliders
  • Z-axis options include sizes 16 or 25 LEYG guided rods
  • Actuators are ordered separately
  • See Electric Actuator Model Selection Software for sizing help
LEA X-Y-Z Axis Gantry with Support Guide
New
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
X-axis Configuration Status
Y-axis Configuration Status
Y-axis mounting direction Configuration Status
Y-axis bracket (See catalog for bracket number needed for size and stroke) Configuration Status
Z-axis Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
